Although there has been a good deal of information written about prefabricated homes, there is still a lot of confusion about what types of prefab construction are available. Many people associate prefab with modular homes, but that is just one type of prefabrication available.

What all prefab homes have in common is:

  • They are constructed in a protected environment
  • They are faster to build
  • The components are less exposed to the elements
  • They generally cost less to build
  • Construction is generally well supervised in the factory
  • They require a shorter building loan
  • They do not generate as much waste, and
  • The site is less prone to pilferage, which can be costly.

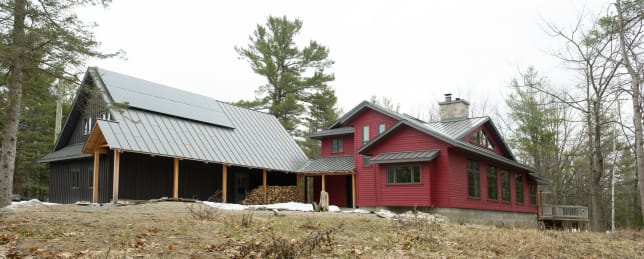

Architect Jeff Armstrong Manufactured DAC International Photographer Mathieu Girard Prefabulous World

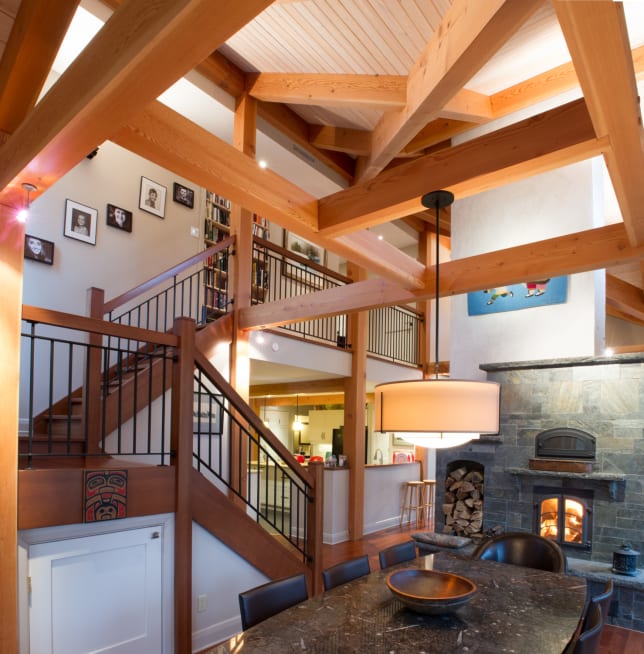

Architect Jeff Armstrong Manufactured DAC International Photographer Mathieu Girard Prefabulous World Interior
Exterior and Interior of a Timberframe Panelized Home. Architect Jeff Armstrong, Manufactured by DAC International. Photo Credit: Mathieu Girard for Prefabulous World

What Kinds of Prefab Construction Are There?

There are many different types of prefab. In some cases, two or more methods are used to build a house. For example, a timber frame system is often constructed with a penalized or structural insulated panel (SIP) system. A modular system can also be built using a prefabricated steel frame and a SIP system.

The most common types of prefabricated houses are:

Is Prefab Better for the Environment?

Anyone who has seen a house under construction on-site will see all the debris associated with the project. There are often one or more dumpsters on the property, which are often filled to the brim. The homeowner pays for the material going into the dumpster, in addition to the tipping fees for unloading it. There is also the matter of all that material that is going to waste. When building with prefab, that waste is vastly reduced. When wood is cut to a particular size in a factory, they save the cut-off for future use. The cut-offs of metal are recycled, as is the drywall. In some cases, when the cut-offs of wood are not needed, they are sometimes put out for residents in the area to use as firewood. But very little material is wasted.

In addition, there is far less fuel used in delivering materials. When a house is built on-site, deliveries of materials go to just that particular house. When deliveries go to a prefab factory, manufacturers can deliver materials for the building of multiple homes. These materials include items such as windows, wood, insulation, etc.

What Are Some Of The Misconceptions About Prefabs?

The earliest prefab homes were kit homes purchased from a catalog, with the parts delivered by train to the customer. The components were all cut to order with instructions for putting them together. Often people built their own homes and sometimes had a contractor build the house. These early houses manufactured in factories, for the most part, were also quite simple. There were things they couldn’t include, such as multilevel roofs.

When I started writing about prefab houses in the early 2000s, some parts of the homes were site-built because the factories couldn’t do more complex designs. Some people still think about prefab houses as those early simple little boxes. Today, however, prefab manufactures can build almost any type of house using prefab methods.

People also think about them being poorly built. Since most prefab houses require an independent builder to complete the house, the overall quality will depend, in part, on the builder. However, the components themselves are most likely of a higher quality than a site-built home. This is true because the materials are protected before and during construction, so the parts are wood they won’t warp or twist later because of wet conditions. There are generally supervisors overseeing all details of the structure in the factory, so there is less chance of error. In addition, many factories now employ computer numerical control machines (CNC) machines which are far more accurate than any tools used on site. Modular homes are often confused with manufactured housing. Modular homes are built to local codes, whereas manufactured houses adhere to the Manufactured Home Construction and Safety Standards or HUD Code

How Do The Various Types Of Prefabs Differ?

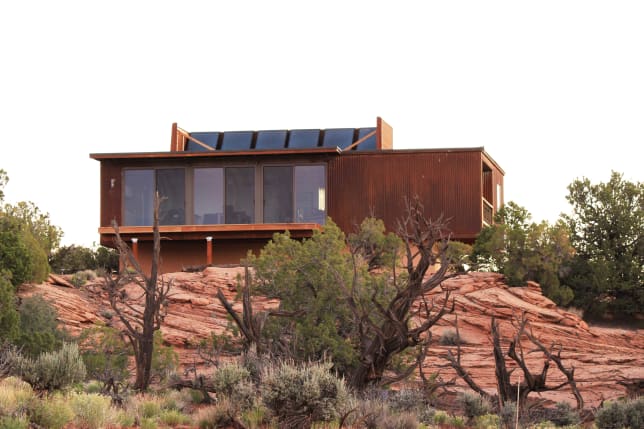

Modular House in Moab Designed by Jamie Kowal for Irontown Homes
Modular House in Moab Designed by Jamie Kowal, Manufactured by Irontown Homes

What Is a Modular Home?

Modular homes are built in the factory as modules or boxes. Sometimes there is only one module, and at times there are 26 or more. The amount of completion of the module also varies. Some buyers prefer to have the house completely finished with flooring, appliances, shelving, and siding; others prefer to buy them unfinished so they can complete all of that work on site. Modular construction is one of the most complete types of prefab. The modules are delivered to the site on flatbed trucks and then lifted with a crane onto the preconstructed foundation. A plumber and electrician are needed to connect all the water and electricity to the site, but construction can progress quickly. Builders can combine modular construction with other types of prefab methods such as steel frame construction and SIPs. Some modular manufacturers are Method HomesConnect Homes, CT Valley HomesAtlantic Modular BuildersSignature Building SystemsWestchester Modular Homes.

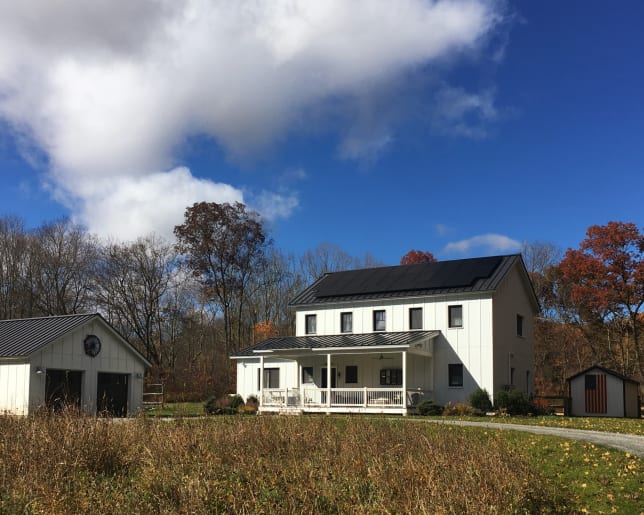

Panelized Home by Unity Homes in Easton, CT.
 James R. Salomon Downsize Living Large In a Small House Sheri Koones
Panelized Home by Unity Homes in Easton, CT. Photo Credit: James R. Salomon for Downsize: Living Large In a Small House by Sheri Koones

What Is a Panelized House?

Panelized systems are like jigsaw puzzles. Manufacturers construct the house parts in the factory, and then they are put together on site. These parts are more straightforward to deliver than modules because more panels can fit in or on a truck. These walls include the framework and insulation and often the interior and exterior walls. Sometimes the windows are installed, but usually, workers install them on-site. The siding and roofing install also occurs on-site, so there is continuity between the house sections. Stillwater DwellingsBensonwoodYankee Barn Homes.

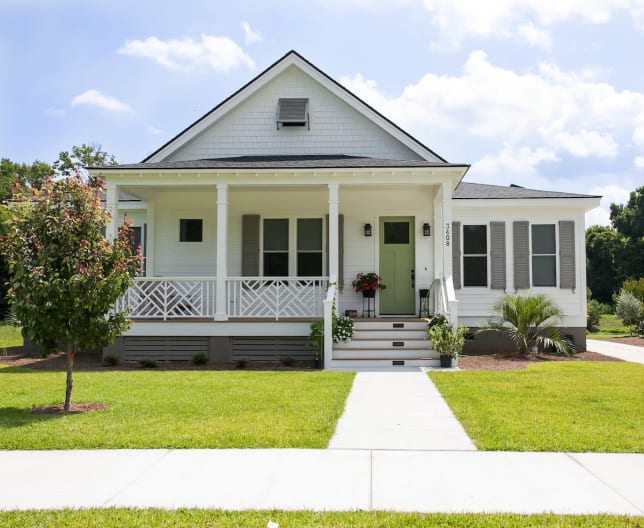

SIPs Extreme Panel Sam Rashkin Prefabulous Small Houses
SIPs Home by Extreme Panel. Photo Credit: Sam Rashkin for Prefabulous Small Houses

What Is a Structural Insulated Panel Prefab Home?

SIPs are a highly efficient method of construction. These walls or panels are constructed from two OSB boards with foam insulation in the center. The three parts are fused together in the factory. These panels are rapid to install, are lighter to handle than many other panelized systems, and are highly energy efficient. There are also metal SIPs, which have metal panels on the interior and exterior with foam insulation. Often, SIPs builders combine them with timber frames, such as those by FabCab and EPS Buildings.

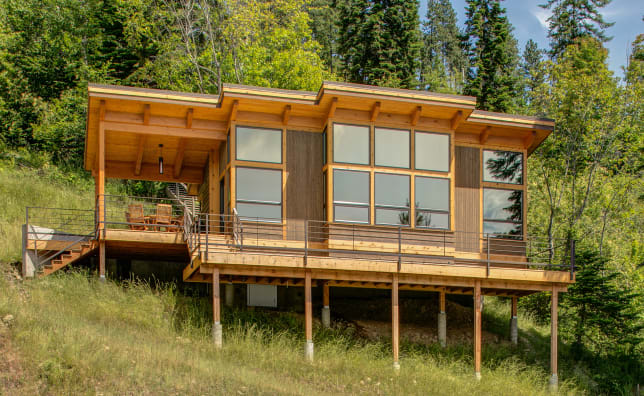

Timber Frame With SIP Fab Cab Sagle Idaho
Timber Frame Home With SIPs by FabCab in Sagle, Idaho

What Are Prefabricated Timber Frame Homes?

Prefabricated timber frames and post and beam frame houses are now generally precut in a factory. At one time, these were built on-site, but today they are cut in the factory, numbered, and erected on site. Timber frames are self-supporting structures connected with mortise-and-tenon joints. Post-and beam systems are similar except that the connections are more often made with metal or some other type of connection. Some companies that produce these frames are BensonwoodYankee Barn Homes.

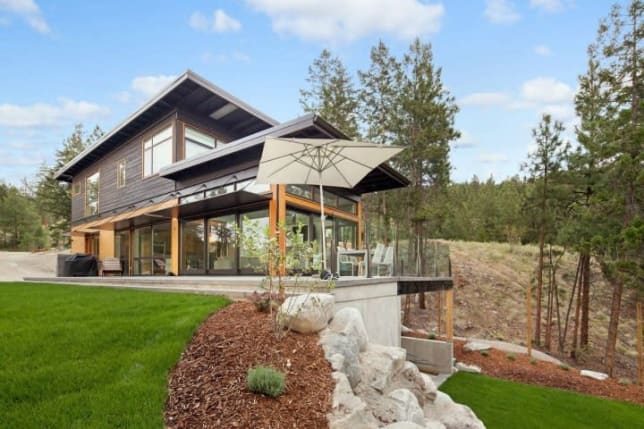

Steel Frame Karoleena Inc Jacob McNeil Prefabulous World
Steel Frame Home in British Columbia by Karoleena Inc. Photo Credit: Jacob McNeil for Prefabulous World

What Is a Steel Frame Prefab Home?

Steel framing systems are robust and particularly desirable in hurricane, earthquake, and marine environments. At one time, metal construction was mainly confined to commercial buildings. However, in recent years it has often been seen in residential construction. Metal systems can include light gauge steel, which can replace wood frame construction, or heavy-gauge red iron components coated with a red oxide that resists rust. This type of system is used as a post and beam system, which is strong enough to span large distances without support. There are also metal insulated framing and SIPs systems which are all-inclusive and highly efficient. Companies such as EcoSteel produce such a system. Metal is a desirable building material because it is durable, resistant to fire, mold, rot, and insect damage. From an environmental perspective, although it has a high embodied energy, it is one of the most recyclable materials globally and will endure for a very long time.

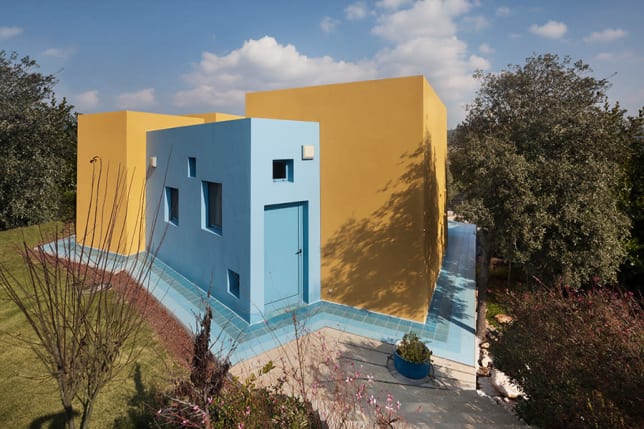

Insulated Concrete Panel House Israel Z-A Studio Assaf Pinchuk
Insulated Concrete Panel House in Israel by Z-A Studio. Photo Credit: Assaf Pinchuk

What Is an Insulated Concrete Prefab Home?

Insulated concrete is a relatively recent type of construction. However, concrete as a building material goes back to the Roman Empire. Concrete is often used because of its strength in areas prone to hurricanes, tornados, and forest fires. The thermal mass and airtight qualities of concrete can also reduce heating and cooling costs. Like metal, it is resistant to rot and termites. Concrete reduces sound transmission and requires minimal upkeep. Concrete construction is carbon-intensive, but many companies are working to change this and produce sustainable concrete productsSolarcrete Inc. and Superior Walls both work with insulated concrete forms (ICF).

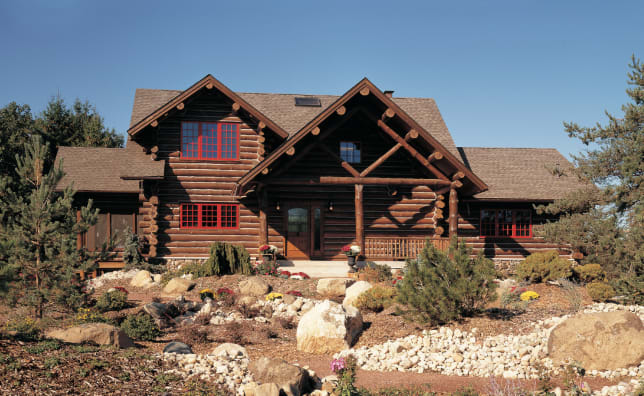

Log Home designed by Architect Gordy Hughe, Manufactured by Maple Island Log Homes and Built by Custom Log Structures Photo Roger Wade Studios for Prefabulous
Log Home designed by Architect Gordy Hughe, Manufactured by Maple Island Log Homes, and Built by Custom Log Structures. Photo Credit: Roger Wade Studios for Prefabulous World.

What Is a Log Home?

Log construction first came to the United States in the 17th century, with settlers building small and simple structures. It wasn’t until the late 1900s that people began building log homes as weekend and vacation retreats. As the years went by, the houses got more elaborate and grand. People are attracted to the natural warmth of the wood and the hominess of it. Most log cabins built today are prefabricated in a factory using sophisticated machinery. However, some are still produced using hand tools. Logs are numbered, trucked to the site, and assembled, and most log companies offer packages. These packages include the log walls, a roof system, doors, windows, porches, and dormers. These materials account for approximately one-third of the cost of a small log house and 15 to 20 percent of a larger custom home’s price. Other items to add to the cost are the foundation, interior walls, electricals, cabinetry, flooring, and different finishes. Some companies that produce log homes are Caribou Creek log homesMaple Island Log HomesBarna Log Systems.

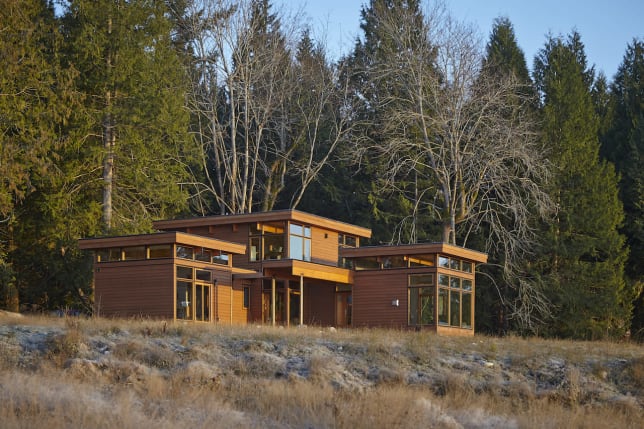

Lindal Cedar Homes in BC Richard Barta Photography for Prefabulous Small Houses
Lindal Cedar Homes Kit House in BC. Photo Credit: Richard Barta Photography for Prefabulous Small Houses

What Is a Kit House?

Kit Houses were some of the earliest types of prefabricated housing. Mail-order catalogs, such as Alladin Homes, Montgomery Ward, and Sears Roebuck Company, sold components to build homes in the early 1900s. The parts were produced in a factory and shipped to the site. On-site, the homeowners or local builders assembled the house. Today’s kit houses are more elaborate and sophisticated. But, they are consistent with the earlier catalog idea, with parts produced in the factory, numbered, and shipped to the site for assembly. One of the advantages of this type of prefab construction is that manufacturers can easily export the components to far-off locations. Lindal Cedar Homes is a company based in Washington State that ships its homes around the United States and other countries.

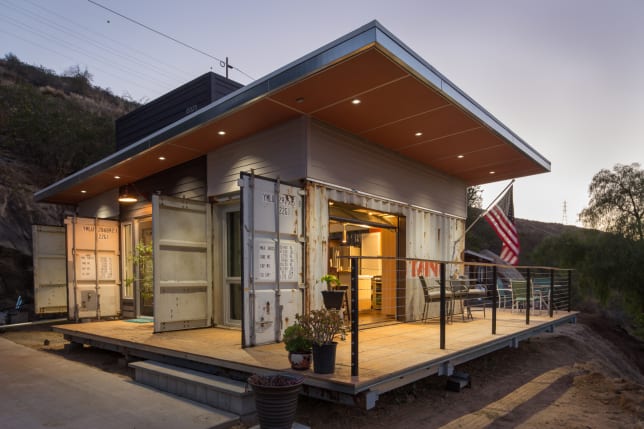

Container Home San Diego County obr ARCHITECTURE Kevin Walsh Photography Prefabulous Small Houses
Container Home in San Diego County by obr ARCHITECTURE. Photo Credit: Kevin Walsh Photography for Prefabulous Small Houses

What Is a Shipping Container Home?

Container Homes are created using shipping containers used to transport heavy loads in harsh conditions. They are therefore capable of withstanding Category 5 hurricanes, which makes them stronger than some other structures. They can be fitted in a factory and easily transported relatively inexpensively by sea, truck, or rail. Used containers may cost between $1,500 to $6,000, depending on their type and location. Once on-site, the project team secures them to a foundation, and there may be one or several containers and maybe stacked when used for a house. Making attachments and alterations to the containers requires skill in metalworking. Building permits may be an issue, depending on the location. They are not allowed in all states. For additional information about where they can be built, check out the website of Valid House.

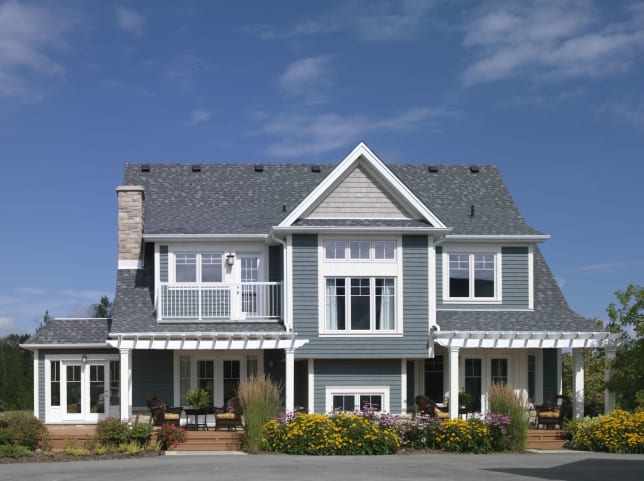

Designed by Watchrom Architect Inc Built by Fifthshire Homes Limited Photographer Stacey Brandford Prefabulous and Sustainable
Steel Frame Home in Ontario Designed by Watchrom Architect Inc, Built by Fifthshire Homes Limited. Photo Credit: Stacey Brandford for Prefabulous and Sustainable

The Prefab Industry’s Evolution

When I first started writing about prefab construction in 2005, many designs could not be built using prefab methods. Today the industry has become more sophisticated. The equipment used to create them in the factories has evolved. Now, prefab designers and builders can match almost any home constructed on-site.

Disclaimer: This article does not constitute product endorsement, and Rise has not been compensated in any way for mentioning or linking to these products.Last Modified: Jul 30, 2021
